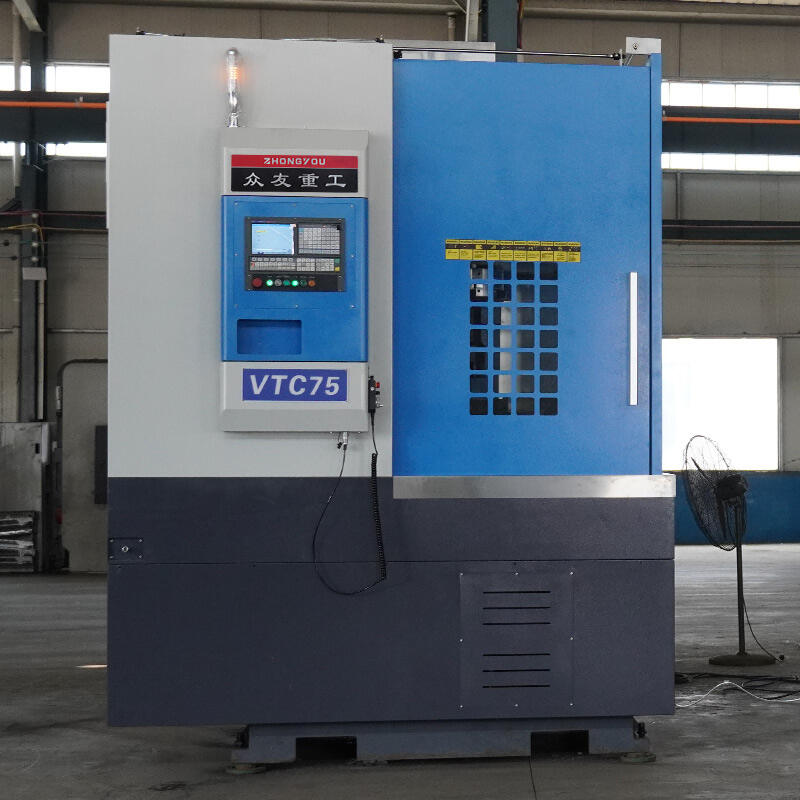

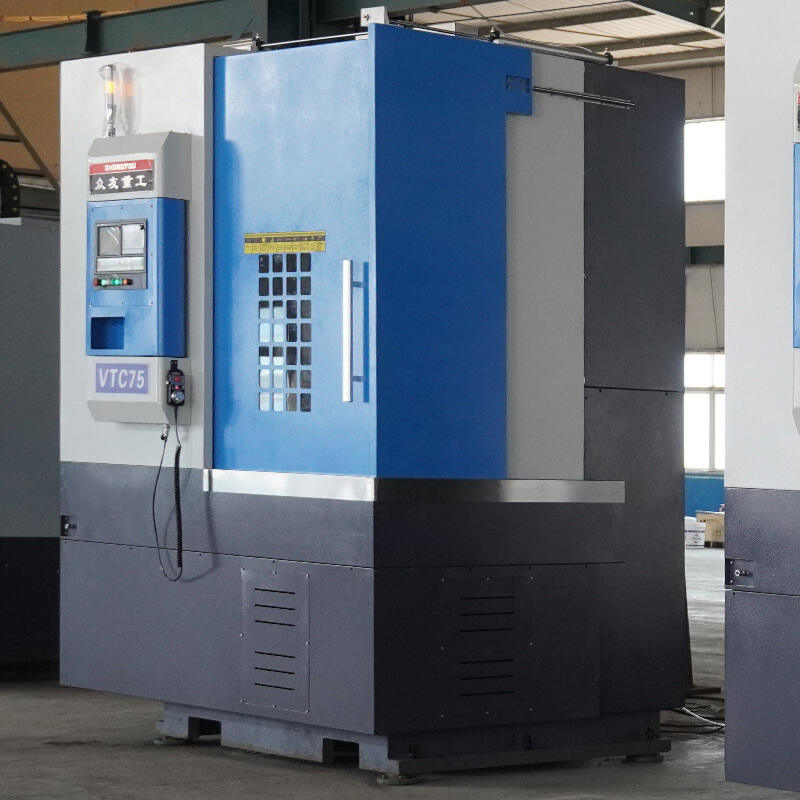

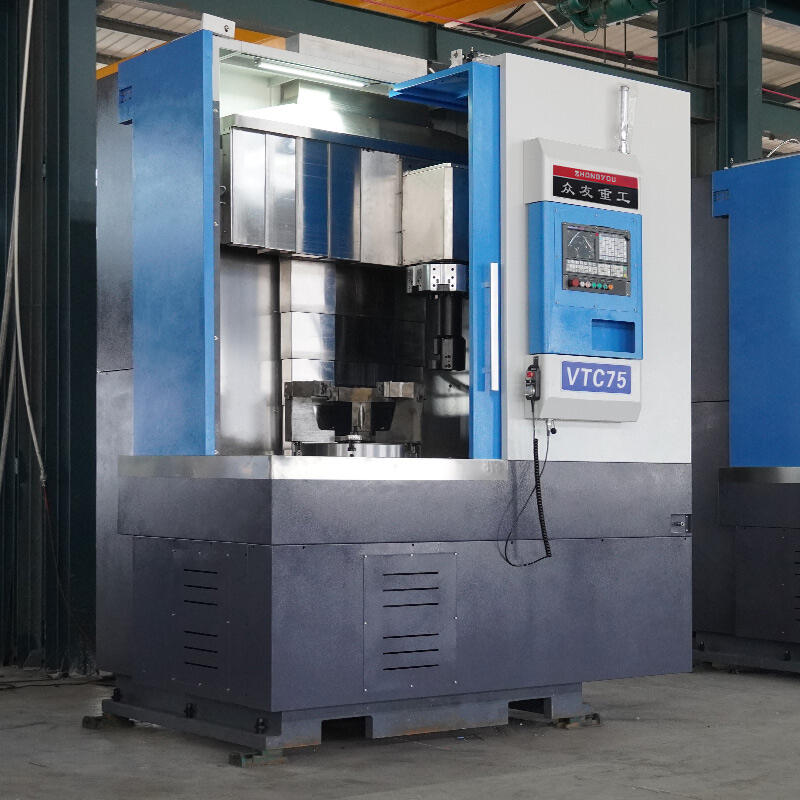

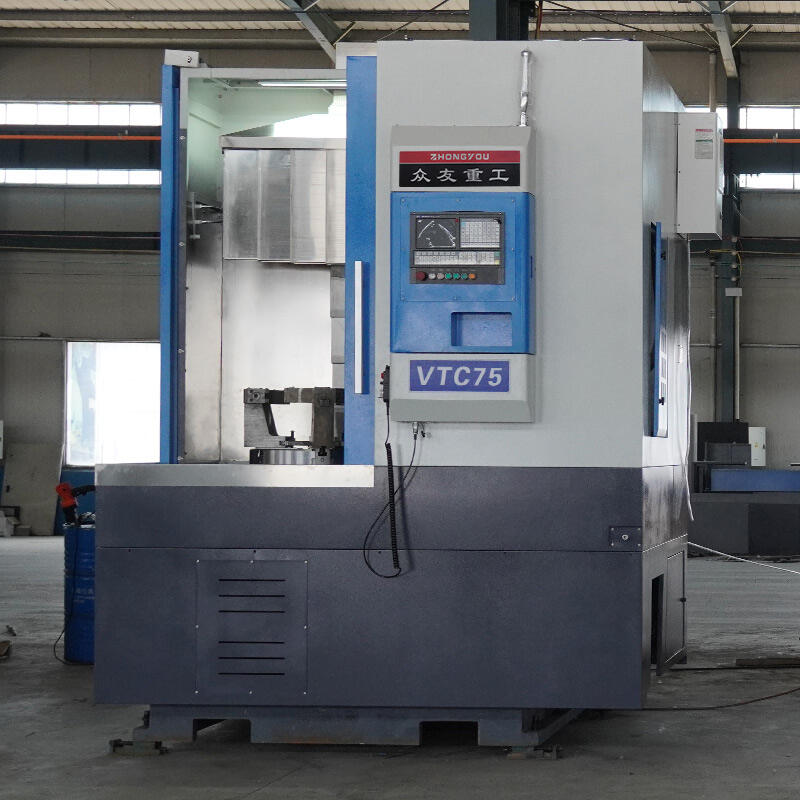

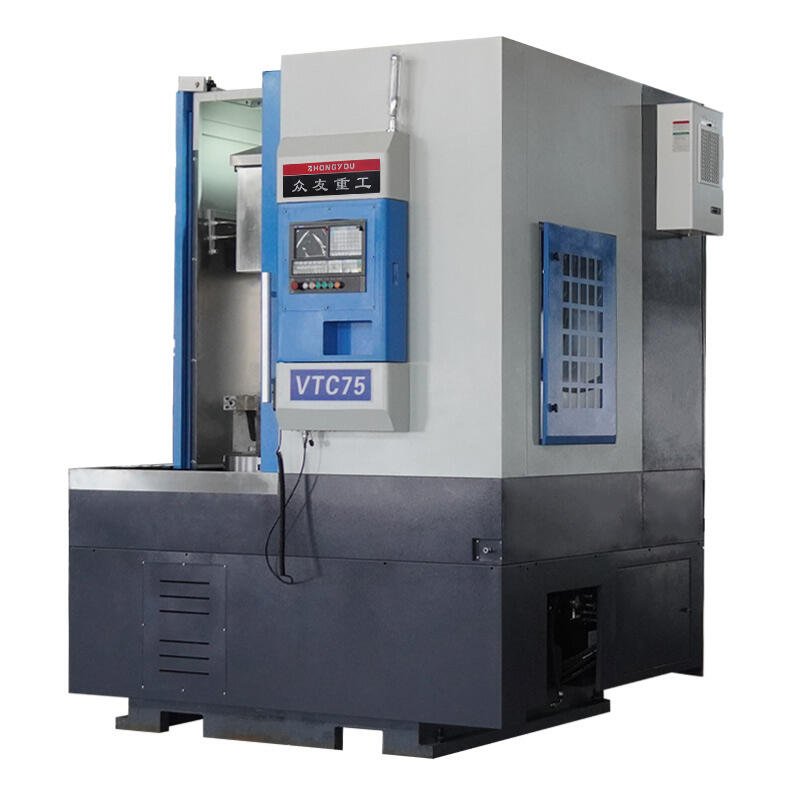

VTC75 CNC Vertical Turning Lathe

The machining range of the VTC75 CNC vertical lathe (with a rotary diameter of 750mm, for example) covers small and medium-sized rotary body parts, which are commonly used in the following industries:

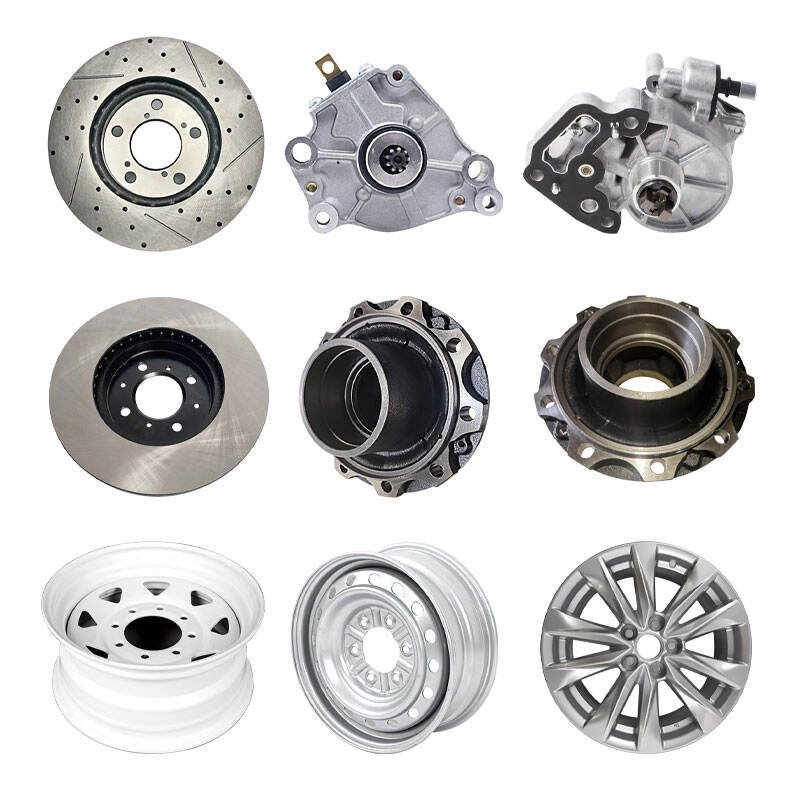

Automobile manufacturing: machining gearbox housing, clutch housing, wheel hub (steel wheel/aluminum alloy wheel), steering knuckle (part), etc;
General machinery: hydraulic cylinders (cylinder barrels, end caps), pump bodies (gear pumps, vane pump housings), valves (valve bodies, valve seats);
Aerospace: aluminum alloy/titanium alloy structural parts (e.g. engine mounts, connecting flanges), precision gearbox parts;
Mold manufacturing: mold inserts (circular/annular), processing of ejector plate guide pillar holes (high coaxiality required);
Energy equipment: wind power gearbox internal gear ring (rough machining followed by finish grinding), pump body flange (sealing surface machining).

1. High rigidity and high precision
The bed is made of resin sand cast iron (e.g. HT300) casting, after aging treatment to eliminate internal stress, to ensure long-term machining stability;
The guideway adopts linear rolling guide (such as THK, HIWIN) or hydrostatic guideway (high-precision models). (high-precision models), high moving precision and wear-resistant;
The spindle adopts high-precision bearing set (such as NSK, SKF) or electric spindle (high-speed model). The spindle adopts high-precision bearing set (such as NSK, SKF) or electric spindle (high-speed model), the spindle runout is less than 0.005mm, which ensures the roughness of machining surface (Ra0.8-1.6μm).
2. Multi-axis linkage and compound machining

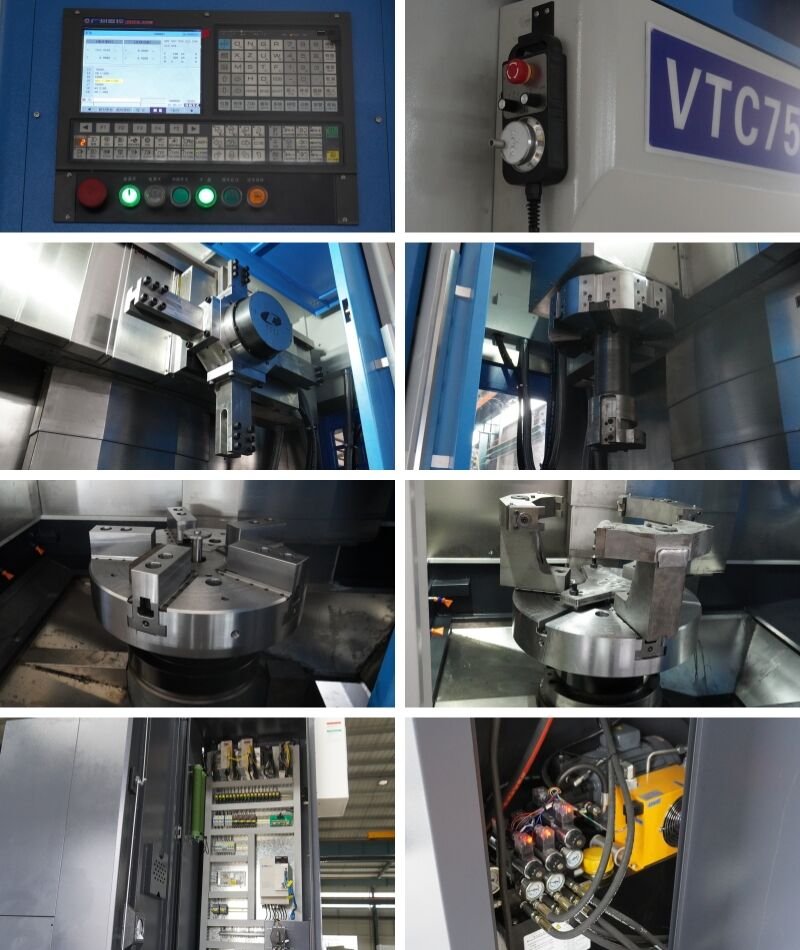

The basic model 75 CNC vertical lathe usually has two-axis control (X/Z axis), supporting turning, drilling and tapping;
High-end models are equipped with C-axis (spindle rotary encoder) + power turret, which can realize three-axis linkage (X / Z / C) The machine is equipped with C-axis (spindle rotary encoder) + power turret, which can realize three-axis linkage (X/Z/C), complete mill-turn compound machining (e.g. milling cam profile on circumference) or Y-axis extension (some models realize beveling machining by additional axis).
3. Intelligent control functions
Automatic tool setting: Through the tool tip contact sensor or laser tool setting instrument, the tool length/radius is quickly measured and automatically compensated, reducing manual measurement errors;
Error compensation: the system has built-in thermal deformation compensation and screw pitch error compensation function, adapting to the precision attenuation during long-time machining;
Continued machining at breakpoint: after power failure or tool change in the machining process, the current program position can be called to continue machining to avoid scrapping of workpieces;
Remote monitoring: some models support the Internet of Things (IoT) interface, which can monitor the machining status in real time (e.g., spindle load, tool wear), and warn of failures in advance.

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.

We provide a full set of hydraulic press equipment and CNC vertical lathe, with many mature design solutions and successful customer cases. We can also provide customized service, provide molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
