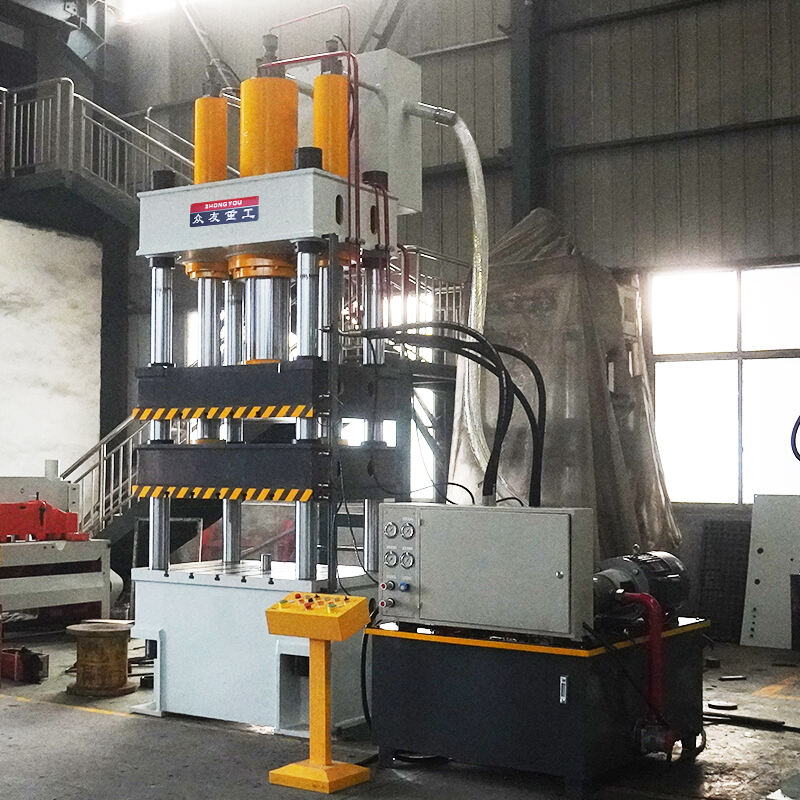

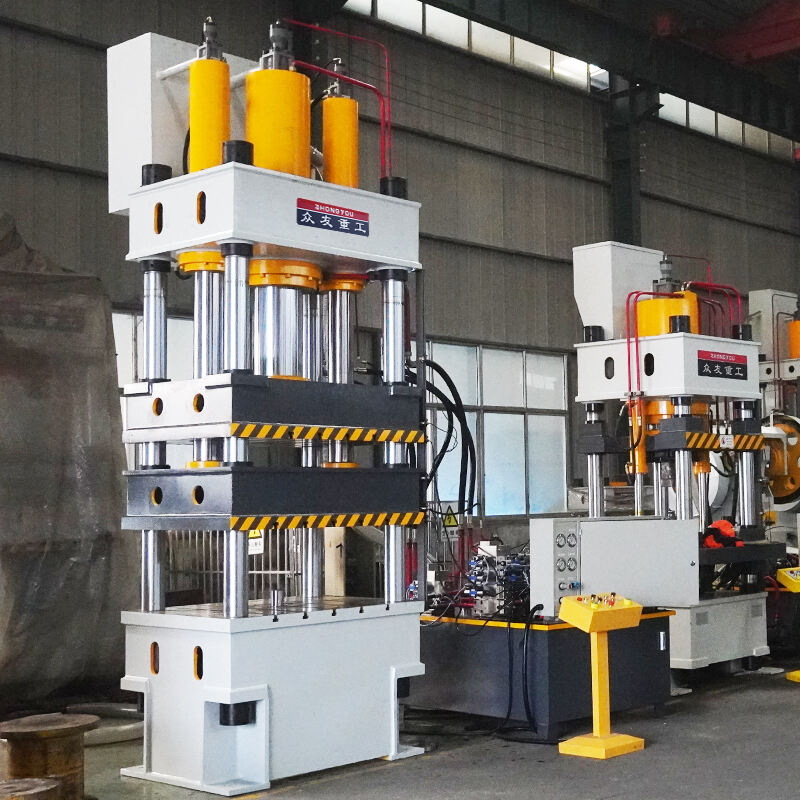

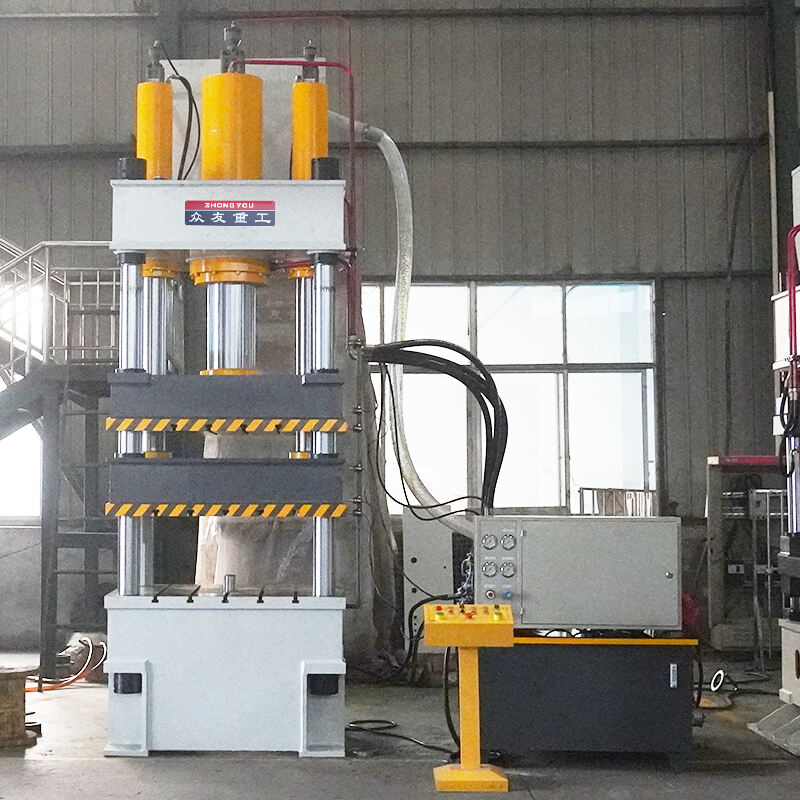

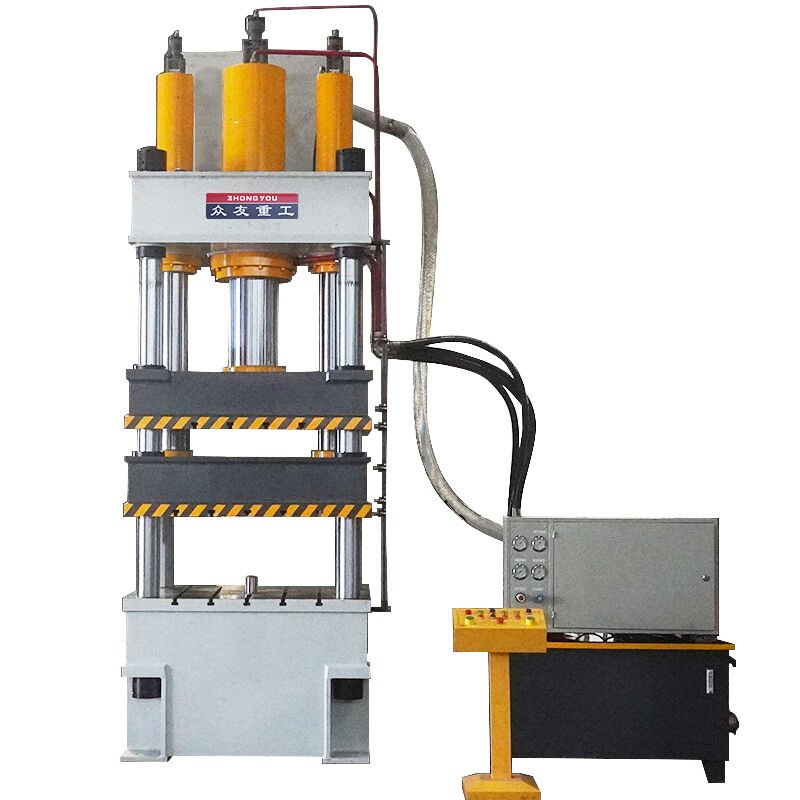

Double-action deep drawing hydraulic press 315 tons

Automobile manufacturing: production of body covering parts (such as doors, hoods), chassis structural parts (such as longitudinal beams, cross members).
Aerospace: manufacture of thin-walled deep cavity parts such as aircraft skins and rocket fuel tanks.
Technical requirements: need to meet the high-temperature alloys, titanium alloys and other difficult to deform the material tensile demand, crimping force needs to be up to a thousand tons.

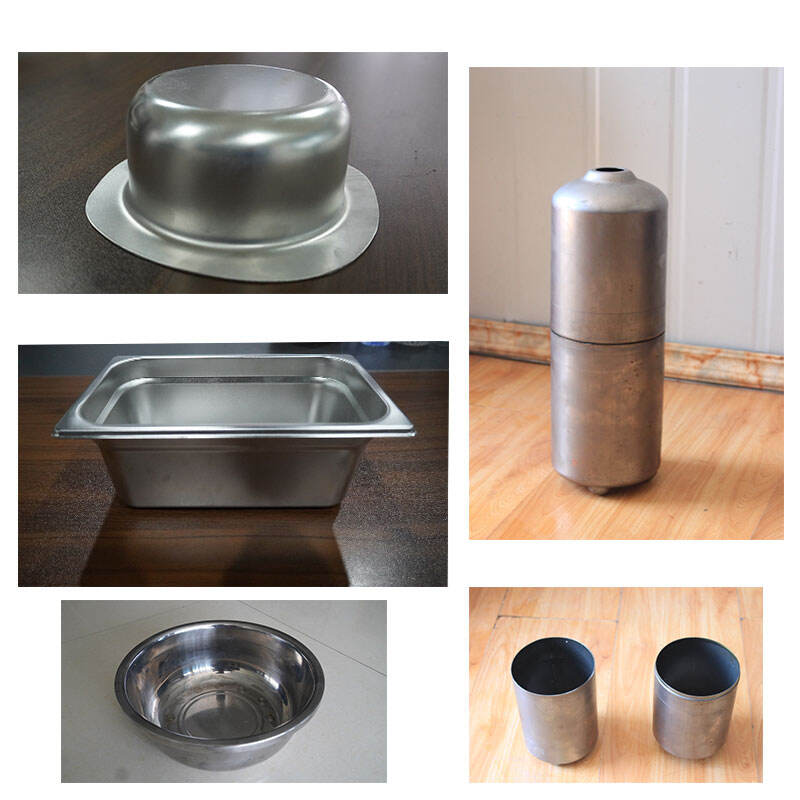

Home appliances and containers: production of stainless steel sinks, enameled bathtubs, pressure vessels, etc..
Suitable for various flat metal materials (such as steel plate, stainless steel plate) stretching into a specific shape.

The double-action deep drawing hydraulic press realizes the separate control of crimping force and deep drawing force through independently driven crimping beam and deep drawing beam, and its technical advantages are reflected in:
Precise adjustment of crimping force
Adopting flexible CNC multi-point crimping technology, with a wide range of adjustment of crimping force, it can adapt to the stretching needs of different materials (such as stainless steel, aluminum alloy) to avoid wrinkles or rupture.
Large stroke and deep drawing ability
Structurally designed inner and outer double sliders, the outer slider (crimping beam) to provide stable crimping force, the inner slider (deep drawing beam) to achieve a large stroke downward, the depth of drawing can be up to more than 60% of the height of the machine body.
Efficient synergistic control

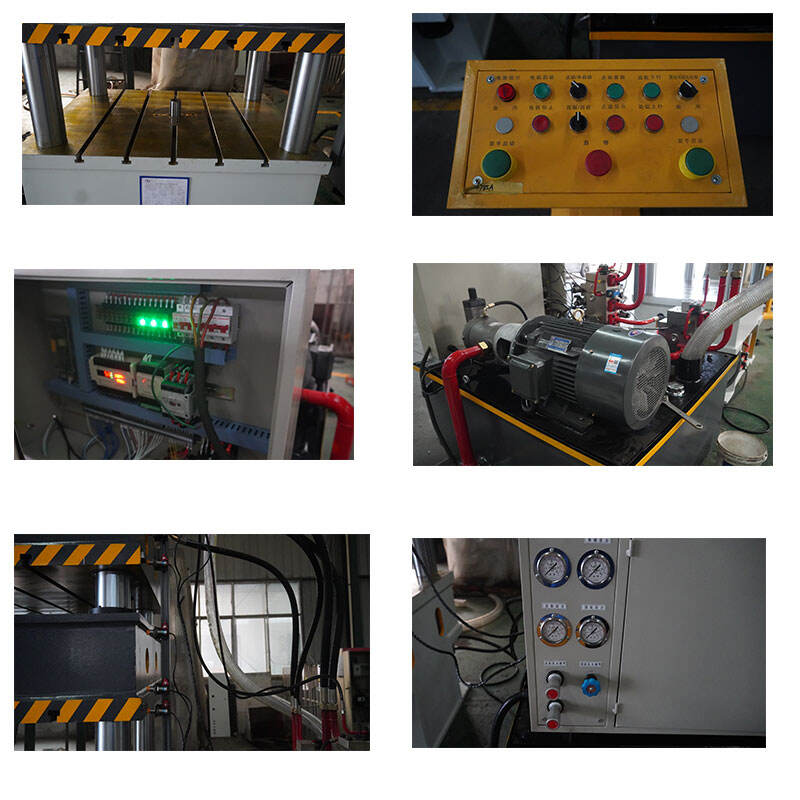

Synchronized control of crimping and deep-drawing motions is realized by PLC or industrial computer, which supports various operation modes such as "Adjustment-Manual-Semi-Automatic".

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.

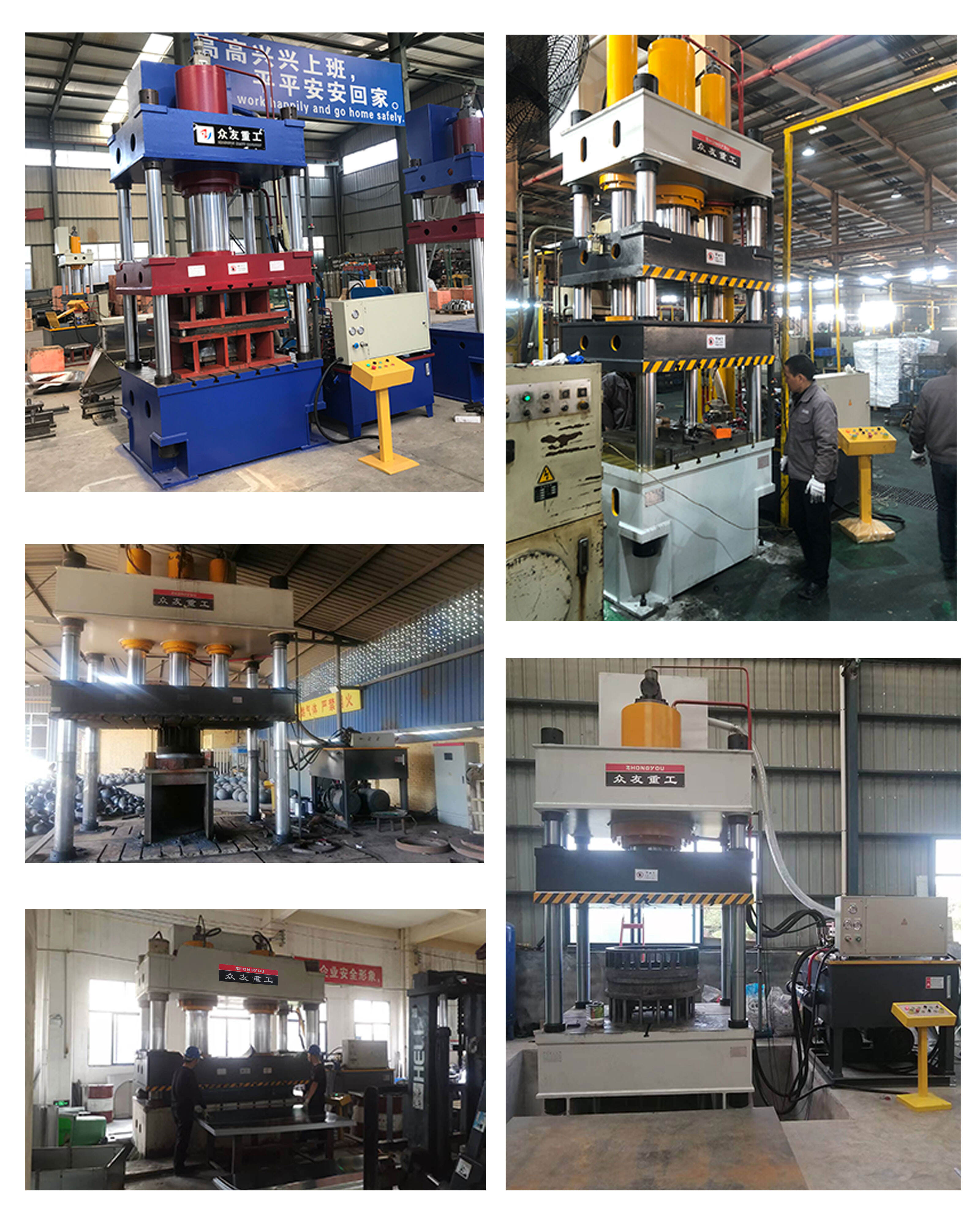

We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
