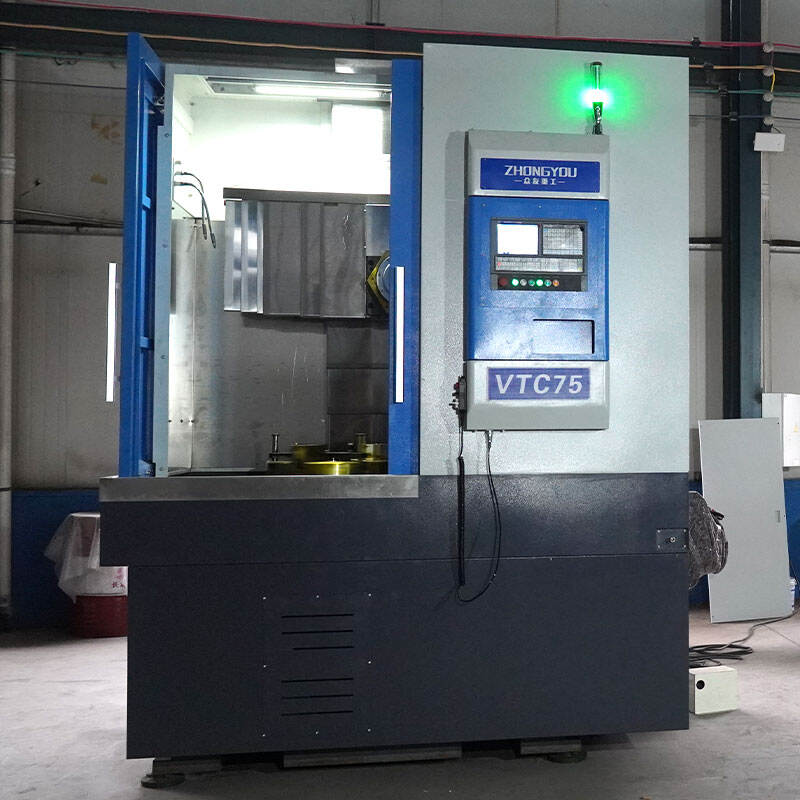

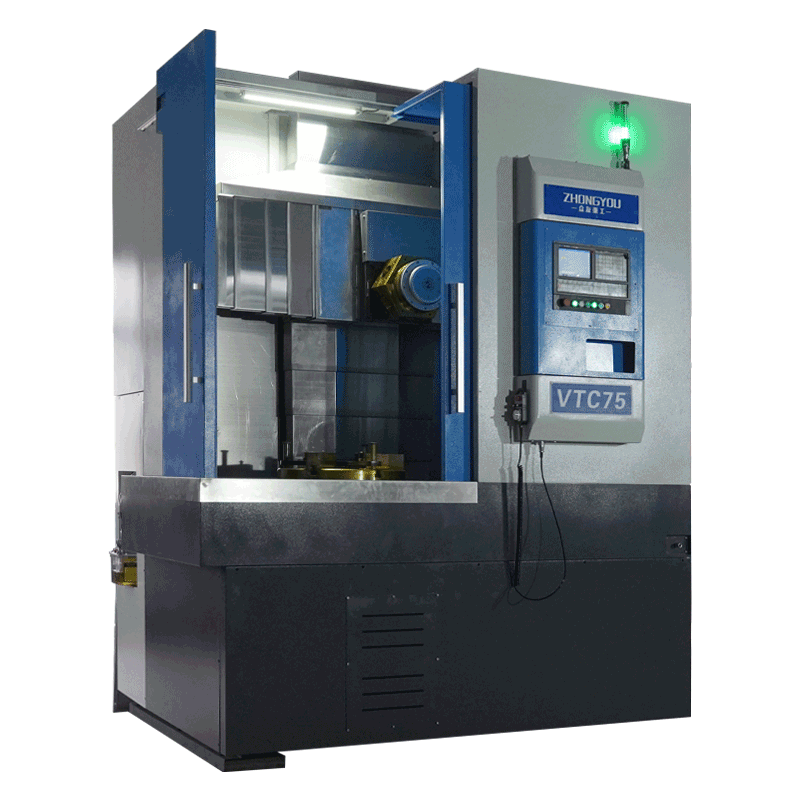

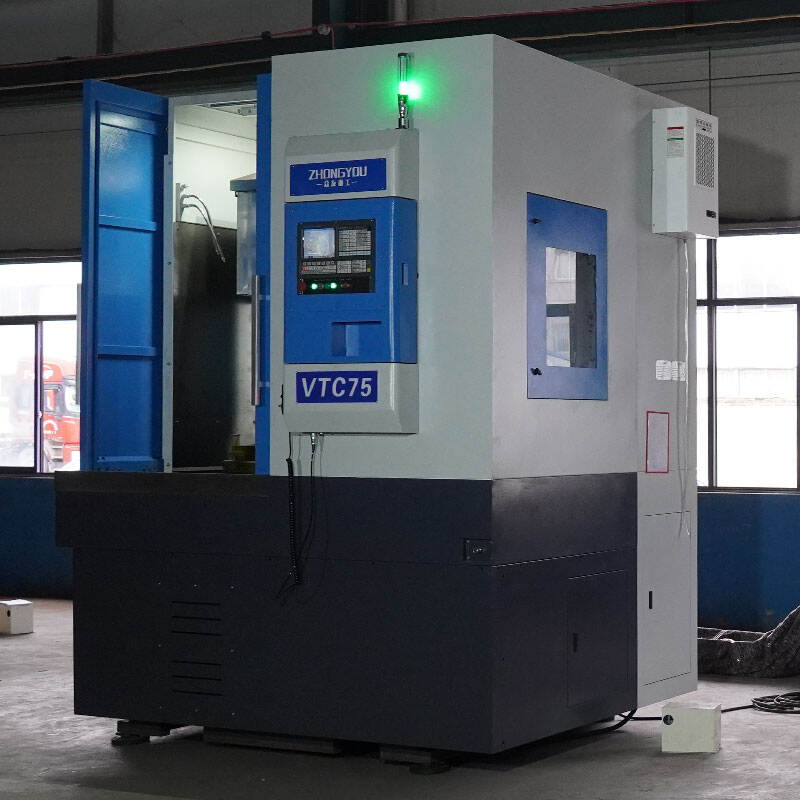

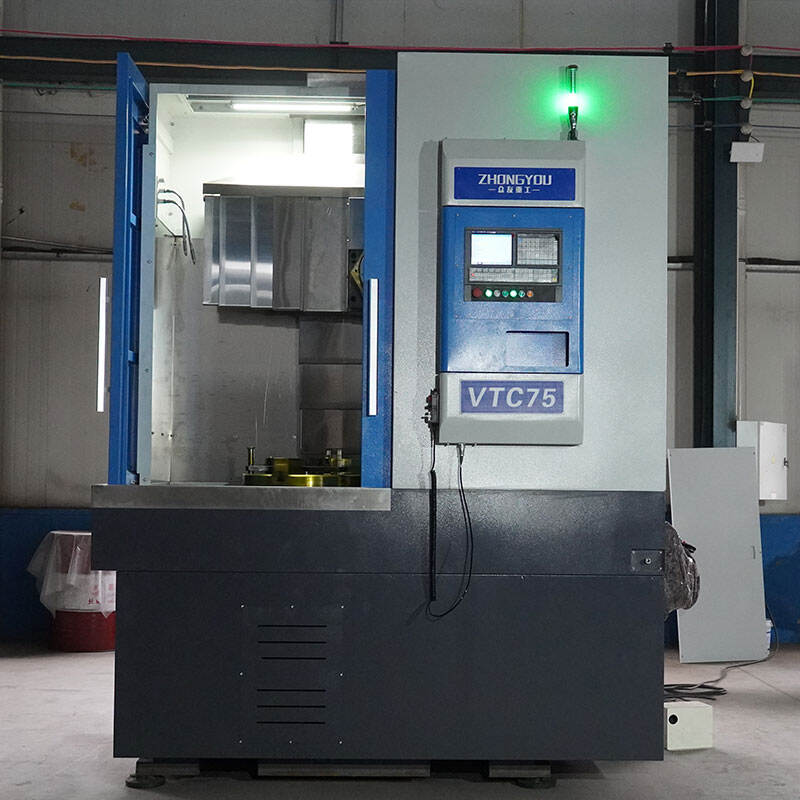

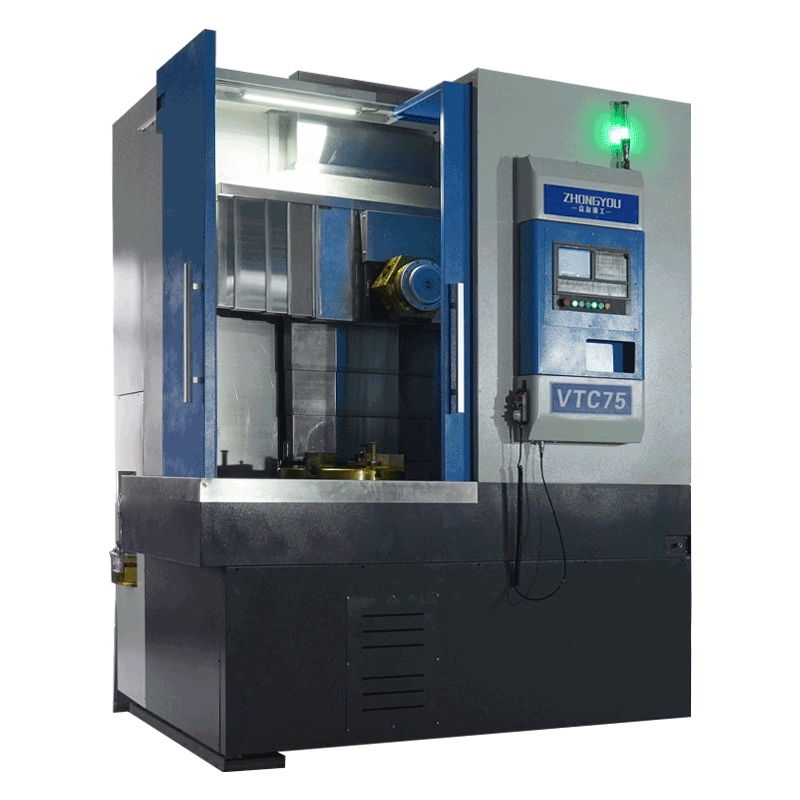

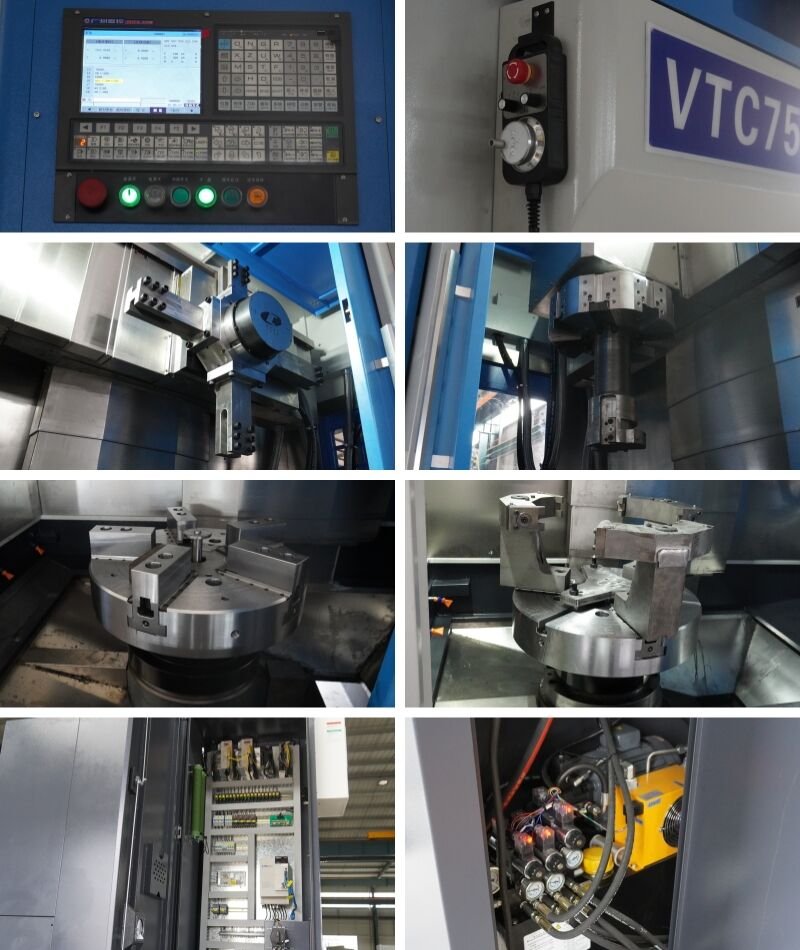

The VTC75 CNC vertical lathe is a high-precision, high-efficiency automated CNC machine tool designed specifically for machining large parts.
| specifications | unit | VT45 | VT65 | VT75 | VTS525 | VTS527 |
| Max.rotating diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Max.turning diameter of workpiece | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle end face form | Straight | Straight | Straight | Straight | Straight | |
| Spindle speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |

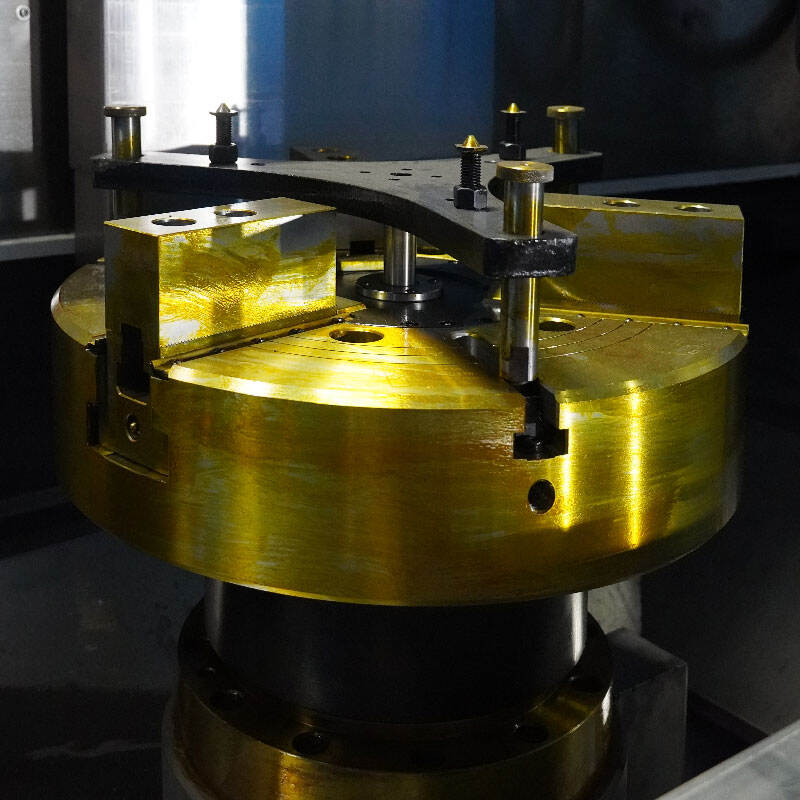

| Hydraulic chuck diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool post type | pcs | eight-station | eight-station | eight-station | eight-station | eight-station |
| Tool shank diameter | mm | 32 | 32 | 32 | 32 | 32 |
| Inner diameter tool holder | mm | ∮40 | ∮40 | ∮50 | ∮50 | |
| Center tool holder | mm | 160 | ||||
| X axis travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z axis travel | mm | 500 | 600 | 700 | 500 | 700 |
| Oil tank capacity | L | 50 | 50 | 50 | 50 | 50 |
| Oil pressure motor | kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Water Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Rotating water motor | w | 250 | 450 | 450 | 450 | 450 |
| Flush motor | kw | 250 | 450 | 450 | 450 | 450 |
| X axis servo motor torque | NM | 12 | 18 | 18 | 15 | 15 |
| Z axis servo motor torque | NM | 22 | 30 | 18 | 15 | 15 |
| Main Servo motor power | kw | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimension | mm | 1700X1880X2500 | 2000X1950X3000 | 2450X1900X3200 | 3000X2400X2700 | 3200X2400X3200 |
| Weight | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Voltage | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% | |
| Electricity Leakage/outage protection | √ | √ | √ | √ | √ | |
| Three-color light indication | √ | √ | √ | √ | √ | |
| Long-term stable working conditions | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | environment Temperature 5～38°, humidity <85％ | |
| Noise meets national standards | √ | √ | √ | √ | √ | |
| ☆The equipment adopts fully enclosed protection, and the protective device is safe and reliable and should comply with GB15760-1995 General Technical Regulations on Safety Protection of Metal Cutting Machine Tools. ☆Equipped with various hydraulic, gas and water pipeline direction signs, marking the working range of various instruments, and marking the grade of the medium used. ☆The diameter of the hydraulic chuck and the tool holder station can be selected according to the processing requirements. |
||||||

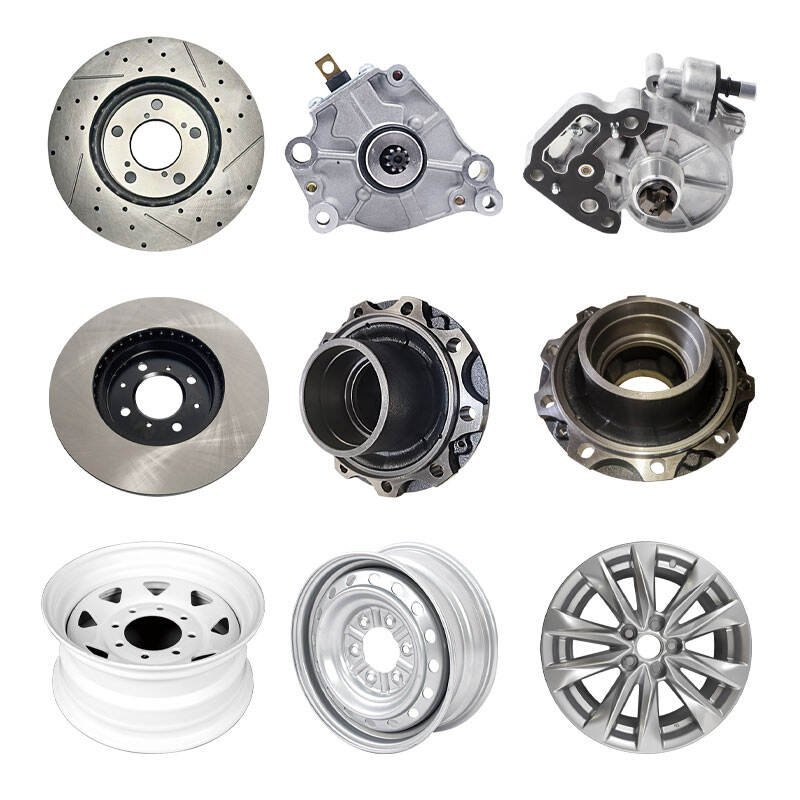

Brake Disc and Wheel Hub Machining: The VTC75 CNC vertical lathe is particularly well-suited for machining disc-shaped components such as brake discs and wheel hubs, capable of completing end face, outer diameter, bore, and thread machining in a single operation.
Construction Machinery and Energy Equipment Manufacturing: In the construction machinery and energy equipment manufacturing sectors, the VTC75 CNC vertical lathe can be used to machine large components such as flanges, meeting the demands for high-precision and high-efficiency machining.
Machining of Other Large Components: In addition to brake discs and wheel hubs, the VTC75 CNC vertical lathe can also be used to machine various other large shaft and disc-type components, such as gearbox housings and large shafts.
High Precision: Utilizes advanced CNC systems and servo drive technology to ensure high precision and stability during the machining process.
High Efficiency: With a high degree of automation, support for rapid tool changes, and multiple machining modes, production efficiency is significantly improved.
Customizable Design: The machine can be customized to meet specific customer requirements, such as adding vertical internal grinding or vertical external grinding functions, to accommodate diverse machining needs.
Compact Design: Compared to other large machine tools, the VTC75 CNC vertical lathe features a compact structure and is easy to operate, making it ideal for machining various shaft and disc-shaped parts.
We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.
We provide a full set of hydraulic press equipment and CNC vertical lathe, with many mature design solutions and successful customer cases. We can also provide customized service, provide molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
