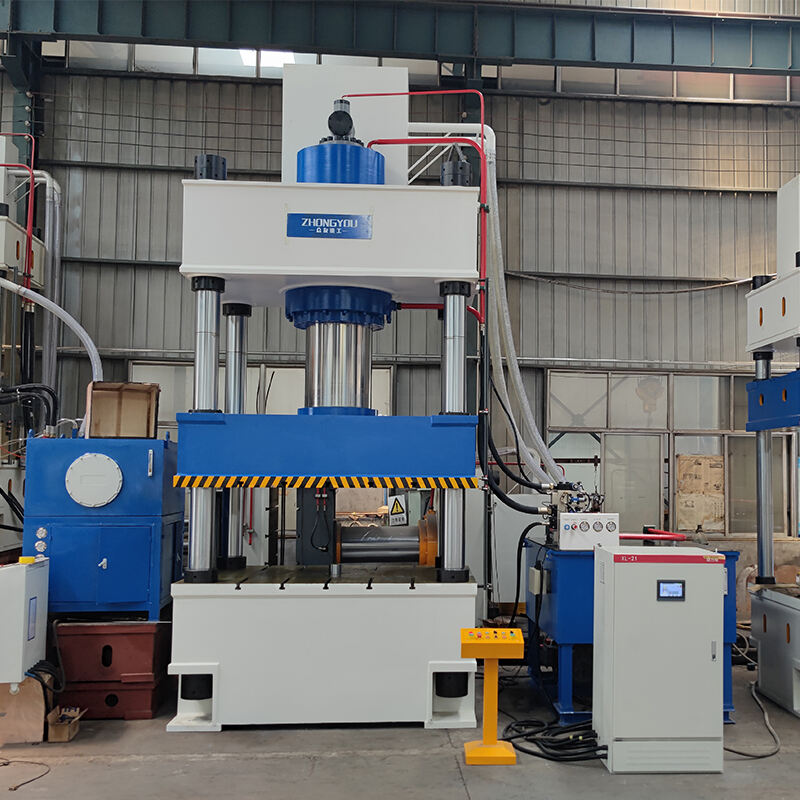

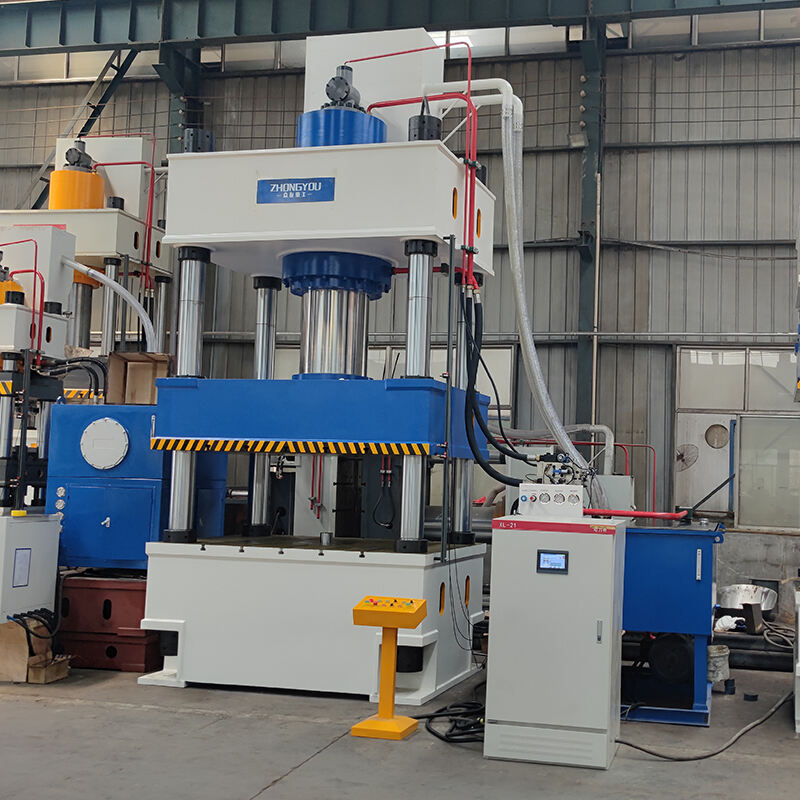

Bulletproof undershirt plate hot press molding hydraulic machine

Place of Origin:	Tengzhou China
Brand Name:	Zhongyou
Model Number:	YQ32-800T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Get a Quote Contact Us

Is there a problem? Please contact us to serve you!

+86-13563258817

[email protected]

Inquiry

Description

Bulletproof undershirt plate hot press molding hydraulic machine (1).png

Hot press molding of bulletproof undershirt panels is a process in which bulletproof materials (such as high-performance polyethylene fibers, aramid fibers, etc.) are pressed into specific shapes by means of high temperatures and pressures. The core of the process lies in the use of a hot press to apply accurately controlled temperatures and pressures, so as to make the material molded into a plate-like structure in a mold that meets the requirements for bulletproofing.

Parameters

YQ32 Technical Parameters
	Unit	YQ32—63	YQ32—100A	YQ32—100B	YQ32—200A	YQ32—200B	YQ32—315A	YQ32—315B
Nominal force	KN	630	1000	1000	2000	2000	3150	3150
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	700	800	900	900	1100	1000	1250
Max Stroke of Slider	mm	400	500	600	600	700	600	800
Effective table size	mm	610×500	630×550	750×700	800×800	1000×1000	800×800	1260×1160
Down speed	mm/s	100	100	100	100	100	100	100
Pressing speed	mm/s	11～22	7～15	7～15	7～18	7～18	7～12	7～12
Return speed	mm/s	80	90	90	90	90	90	100
Ejection cylinder force	KN	100	200	200	400	400	630	630
Stroke of ejection cylinder	mm	160	200	200	200	200	300	300

	Unit	YQ32—400	YQ32—500	YQ32—630	YQ32—800	YQ32—1000	YQ32—1250	YQ32—1600
Nominal force	KN	4000	5000	6300	8000	10000	12500	16000
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	1250	1500	1500	1500	1500	1500	1500
Max Stroke of Slider	mm	800	900	900	900	900	900	900
Effective table size	mm	1260×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Down speed	mm/s	100	150	150	180	180	180	190
Pressing speed	mm/s	5～11	10～18	9～18	9～18	10～18	6～15	6～14
Return speed	mm/s	100	180	200	180	220	200	220
Ejection cylinder force	KN	630	1000	1000	1000	1000	1000	1600
Stroke of ejection cylinder	mm	300	300	300	300	300	300	300

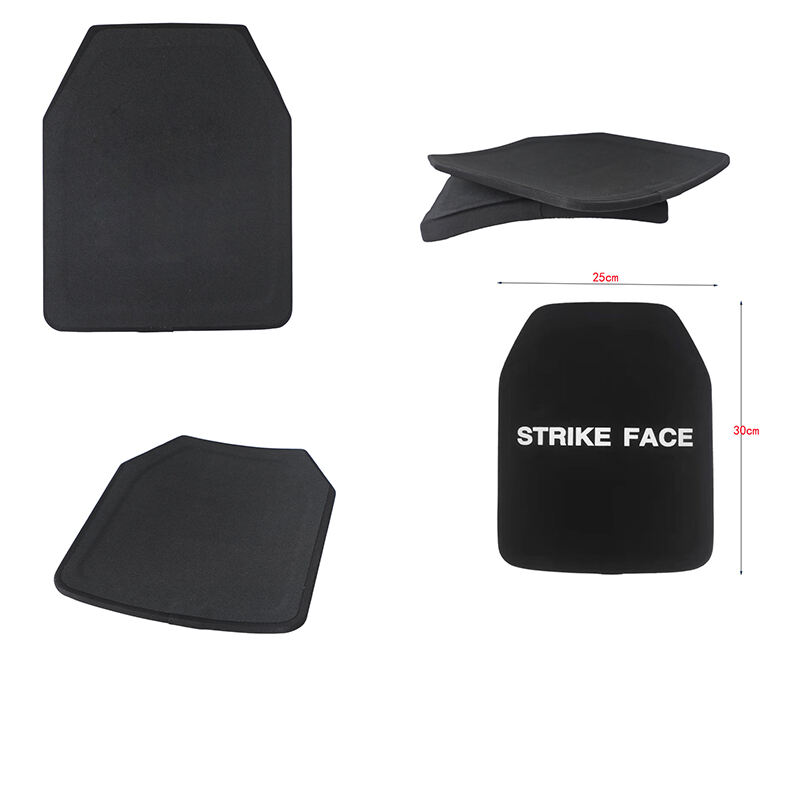

Processed Products

Bulletproof undershirt plate hot press molding hydraulic machine (1).jpg

Applications

Military: Chest, back and side protection for soldiers against gunfire and fragmentation.
Law enforcement: equipping police officers with lightweight bulletproof undershirts that combine protection and mobility.
Civilian field: protective equipment for high-risk occupations, such as security personnel and escorts.

Application Cases

Plastic Pallet Hot Press Hydraulic Press (1).jpg

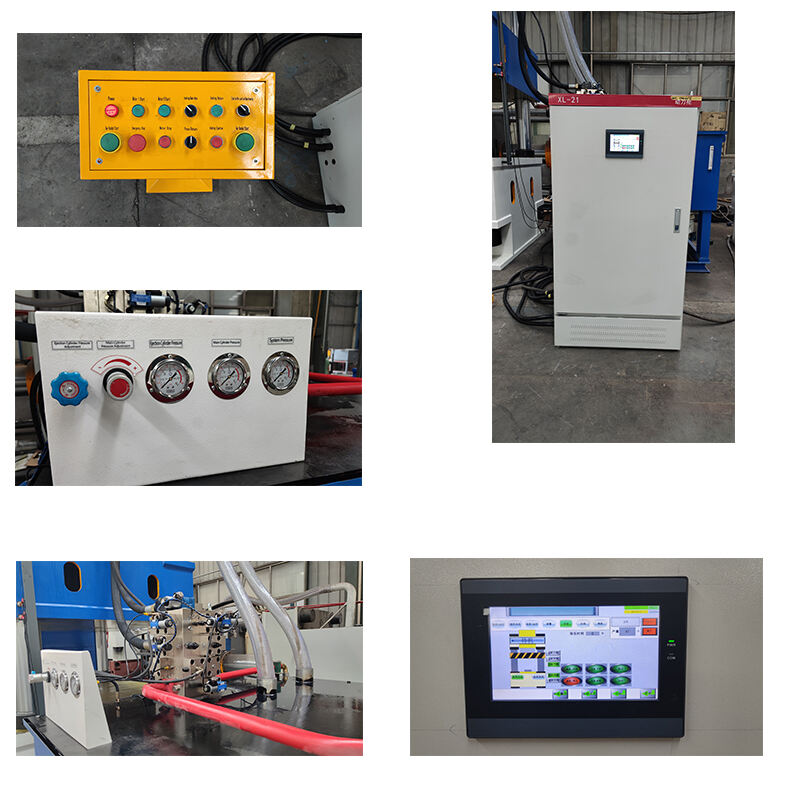

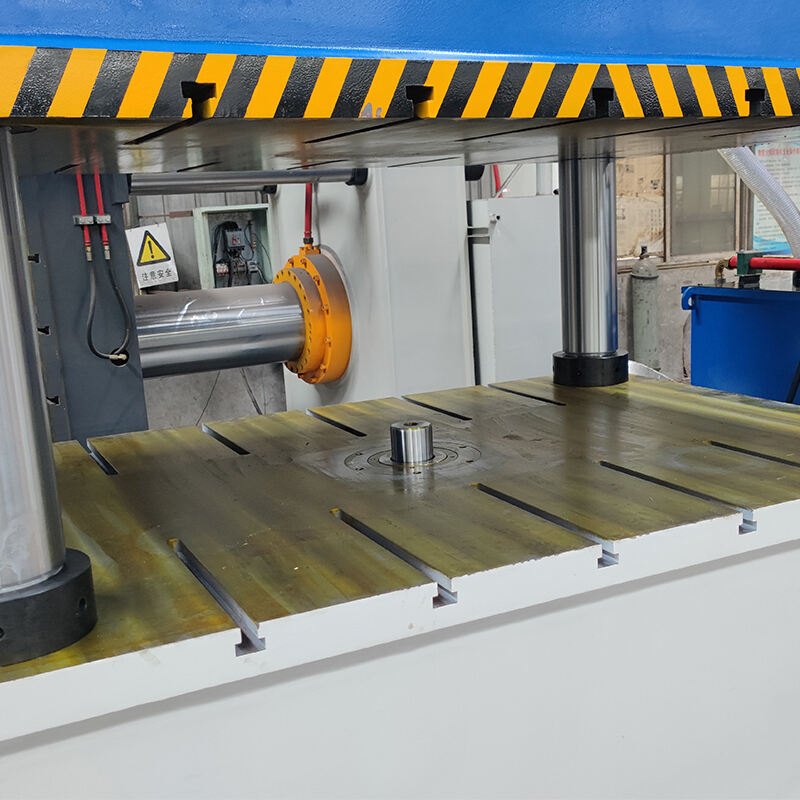

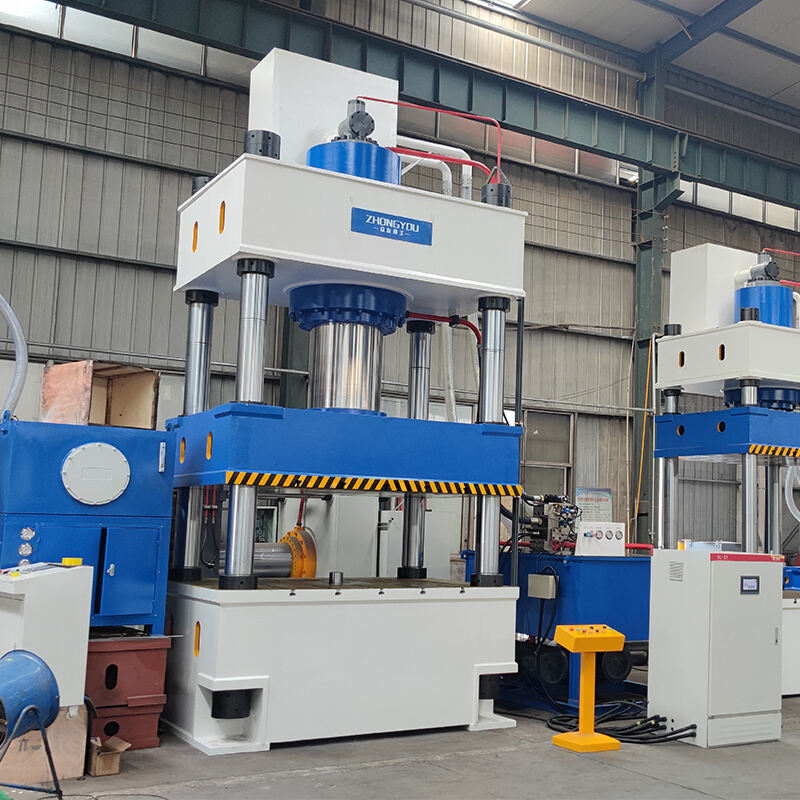

Detailed Pictures


Performance Characteristics

Equipment Advantages
High efficiency: fast response capability, production efficiency is more than 30% higher than traditional mechanical molding equipment.
Uniform Pressure Distribution: Hydraulic cylinders provide stable pressure to ensure consistent product thickness.
Flexibility: By changing molds and adjusting parameters, it can adapt to a variety of material molding needs.
Safety: Equipped with overload protection and emergency stop device to reduce operation risk.

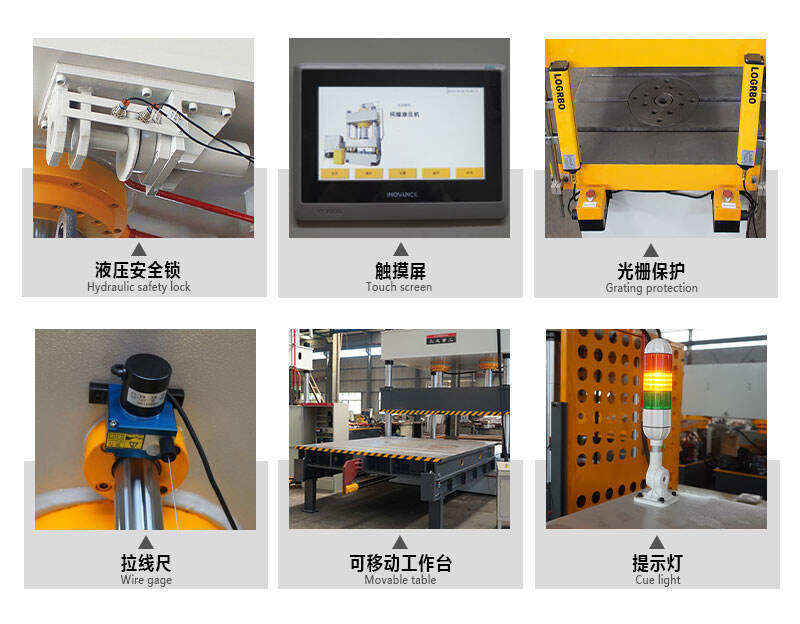

Optional Configurations

Bulletproof undershirt plate hot press molding hydraulic machine (.jpg

Packing & Shipping


After-Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing hydraulic press user manuals to facilitate user learning on how to operate and maintain the hydraulic press.

About The Company

We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
