Home / Water tank making press machine / Hydraulic Press Machine For Stainless Steel Water Tank Manufacturing
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Zhongyou |
|
Model Number: |
YQ32-400T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

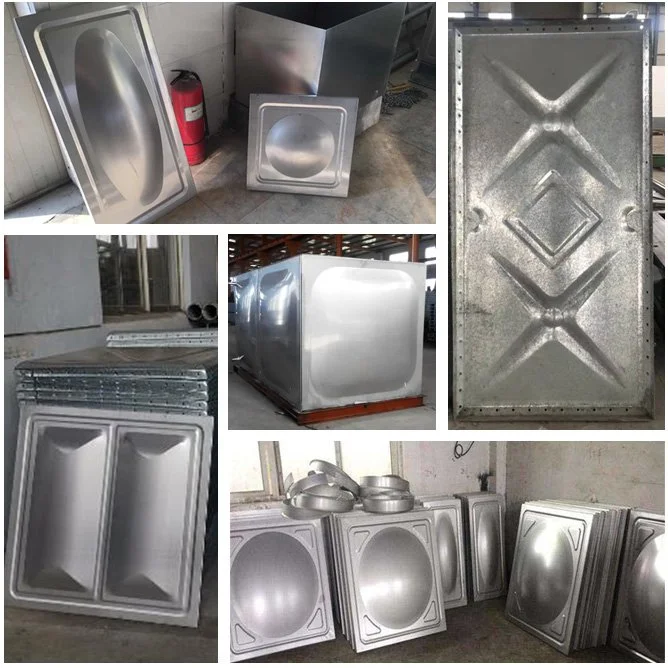

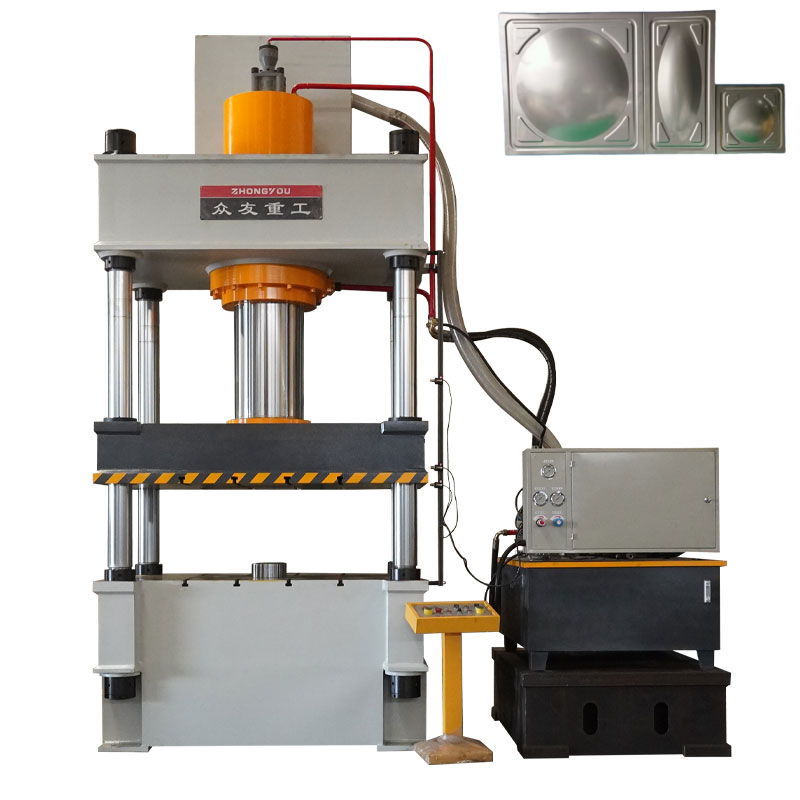

This is a hydraulic press for manufacturing stainlesssteel water tanks, which can output a strong pressure of 400 tons (customizable) to press the water tank panels quickly and accurately. By changing different molds, the machine can press different sizes of water tank panels, including rectangular metal water tanks, fire fighting water tanks, large stainless steel water storage tanks and so on. At the same time, we can provide you with the whole stainless steel water tank production line equipment.
|
YQ32 Technical Parameters |
||||||||
|
|
Unit |
YQ32—63 |
YQ32—100A |
YQ32—100B |
YQ32—200A |
YQ32—200B |
YQ32—315A |
YQ32—315B |
|
Nominal force |
KN |
630 |
1000 |
1000 |
2000 |
2000 |
3150 |
3150 |
|
Maximun system pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Max.open height |
mm |
700 |
800 |
900 |
900 |
1100 |
1000 |
1250 |
|
Max Stroke of Slider |
mm |
400 |
500 |
600 |
600 |
700 |
600 |
800 |
|
Effective table size |
mm |
610×500 |
630×550 |
750×700 |
800×800 |
1000×1000 |
800×800 |
1260×1160 |
|
Down speed |
mm/s |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
Pressing speed |
mm/s |
11～22 |
7～15 |
7～15 |
7～18 |
7～18 |
7～12 |
7～12 |
|
Return speed |
mm/s |
80 |
90 |
90 |
90 |
90 |
90 |
100 |
|
Ejection cylinder force |
KN |
100 |
200 |
200 |
400 |
400 |
630 |
630 |
|
Stroke of ejection cylinder |
mm |
160 |
200 |
200 |
200 |
200 |
300 |
300 |
|
|
|
|
|
|
|
|
|
|
|
|
Unit |
YQ32—400 |
YQ32—500 |
YQ32—630 |
YQ32—800 |
YQ32—1000 |
YQ32—1250 |
YQ32—1600 |
|
Nominal force |
KN |
4000 |
5000 |
6300 |
8000 |
10000 |
12500 |
16000 |
|
Maximun system pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Max.open height |
mm |
1250 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Max Stroke of Slider |
mm |
800 |
900 |
900 |
900 |
900 |
900 |
900 |
|
Effective table size |
mm |
1260×1160 |
1400×1400 |
1500×1500 |
1600×1600 |
1600×1600 |
1600×1600 |
1600×1600 |
|
Down speed |
mm/s |
100 |
150 |
150 |
180 |
180 |
180 |
190 |
|
Pressing speed |
mm/s |
5～11 |
10～18 |
9～18 |
9～18 |
10～18 |
6～15 |
6～14 |
|
Return speed |
mm/s |
100 |
180 |
200 |
180 |
220 |
200 |
220 |
|
Ejection cylinder force |
KN |
630 |
1000 |
1000 |
1000 |
1000 |
1000 |
1600 |
|
Stroke of ejection cylinder |
mm |
300 |
300 |
300 |
300 |
300 |
300 |
300 |

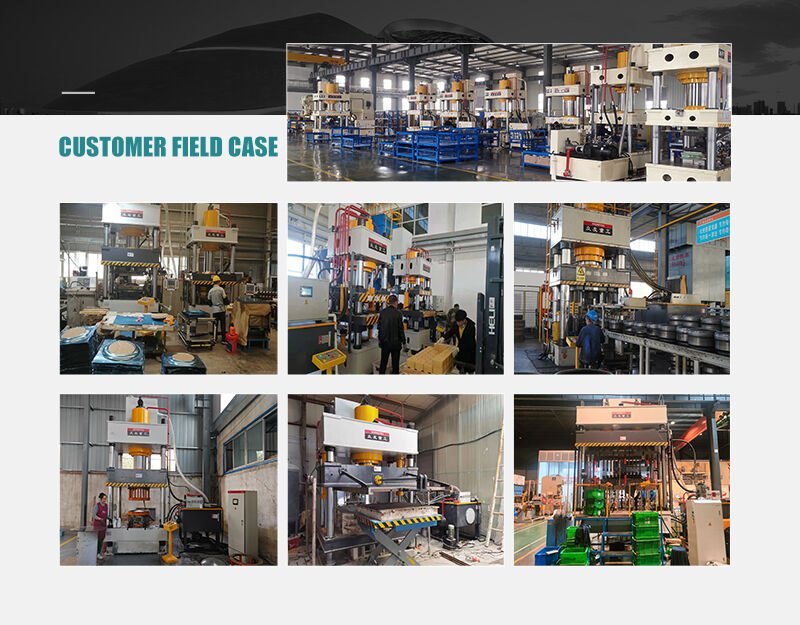

We offer a full range of hydraulic press equipment, with numerous mature design solutions and successful customer cases. Custom services are also available, providing forming molds and corresponding production line equipment, offering one-stop service. Welcome to consult with us.
