200T deep drawing press machine pot hydraulic press

200T deep drawing press machine pot hydraulic press

Place of Origin:	Tengzhou China
Brand Name:	Zhongyou
Model Number:	YD27-200T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Get a Quote Contact Us

Is there a problem? Please contact us to serve you!

+86-13563258817

[email protected]

Inquiry

Description

500T三梁四柱1104783带下顶缸

This is a 200-ton deep drawing hydraulic press. It is equipped with a professional multi-rod ejection device and is specially used for deep drawing and forming of metal sheets. Different molds can be installed and the operation is simple. It can create unlimited possibilities for you and help you occupy more markets.

Parameters

YD27 Series Four-Column Three-Beam Hydraulic Press Machine
Item	100T	200TA	200TB	315T	500T	630T	800T	1000T
System Pressure	25	25	25	25	25	25	25	25
Effective Stroke of Slide	600	600	700	800	900	900	900	900
Opening Height	900	900	1200	1250	1500	1500	1500	1500
Effective Area of Worktable	750*700	800*800	1000*1000	1260*1160	1400*1400	1500*1500	1600*1600	1600*1600
No-Load Descending Speed	90	100	100	120	120	130	150	150
Pressing Speed	17	14	14	11	18	18	18	18
Return Speed	110	110	110	100	170	180	180	190
Motor Power	7.5	7.5	7.5	22	37	44	60	74
Ejection Force of Hydraulic Die Cushion	50	60	60	100	160	200	315	400
Ejection Stroke of Hydraulic Die Cushion	300	300	300	300	300	300	300	300
Area of Hydraulic Die Cushion	φ500	φ550	750X600	750X750	1050X1050	1200x1200	1200x1200	1200x1200

Processed Products

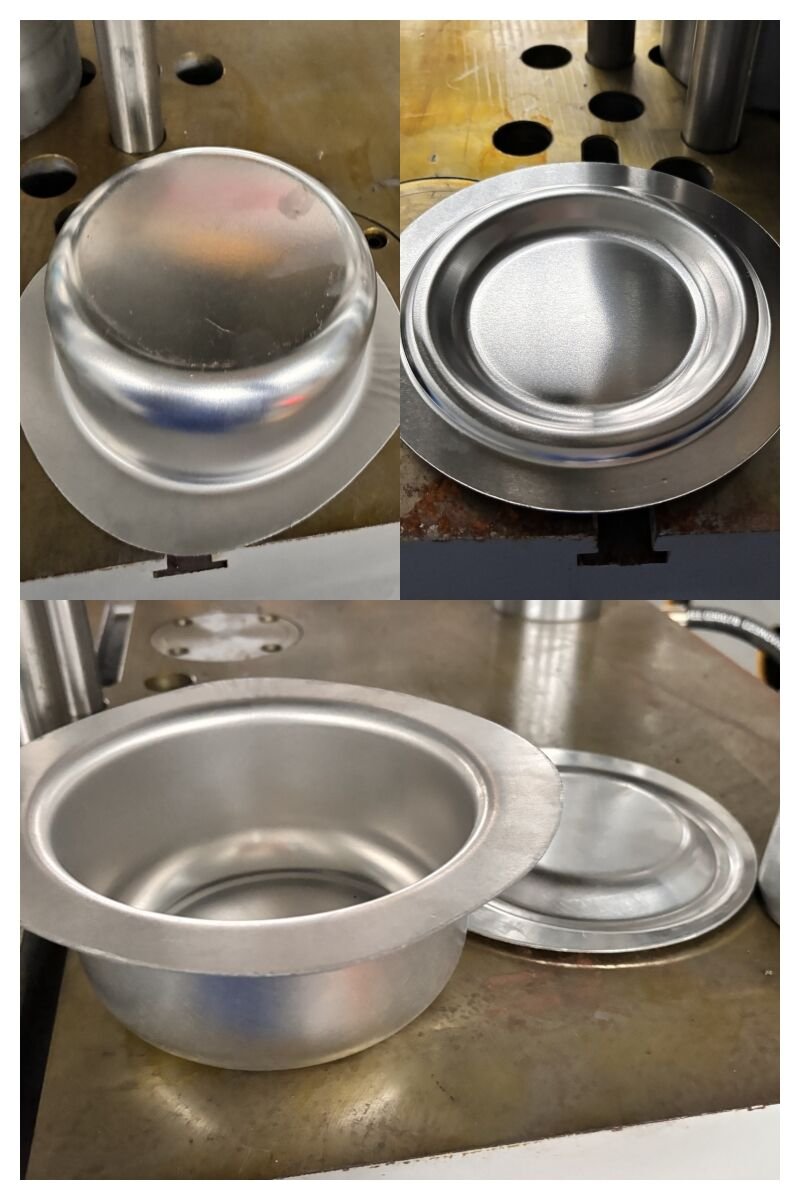

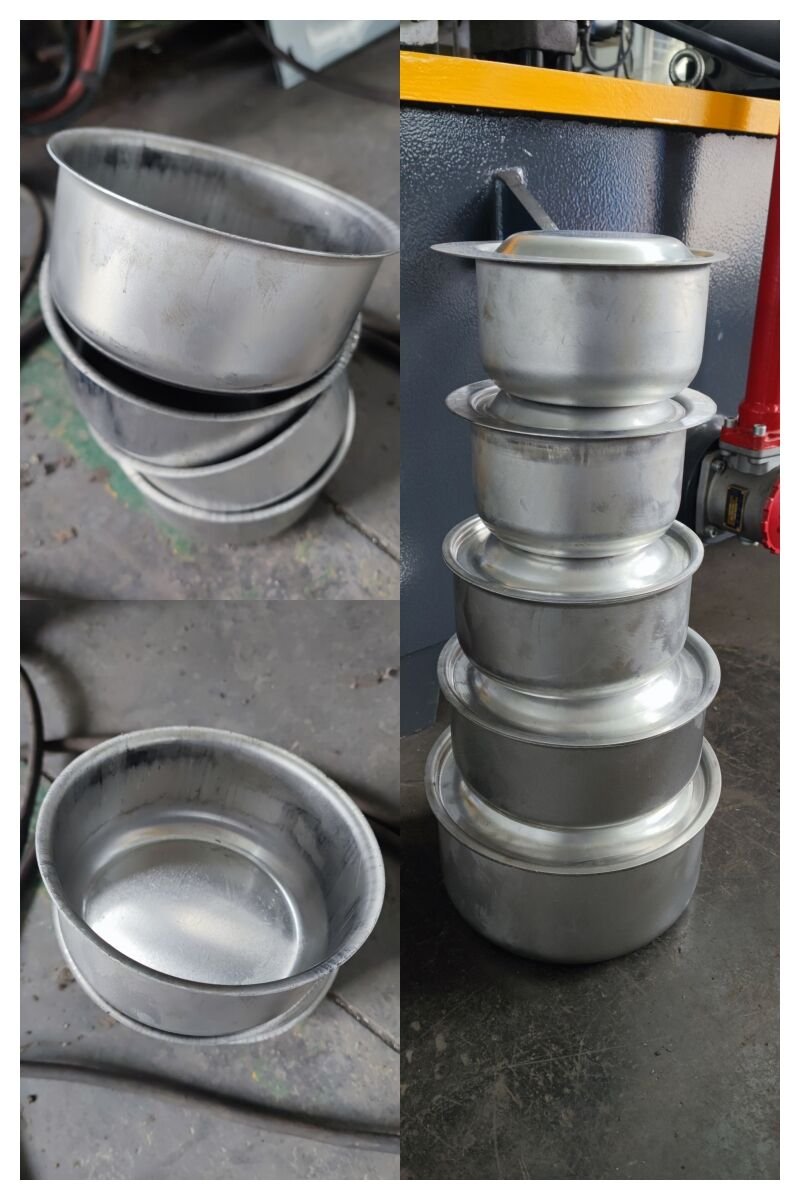

铝锅拼图2_副本.jpg 铝锅拼图.jpg

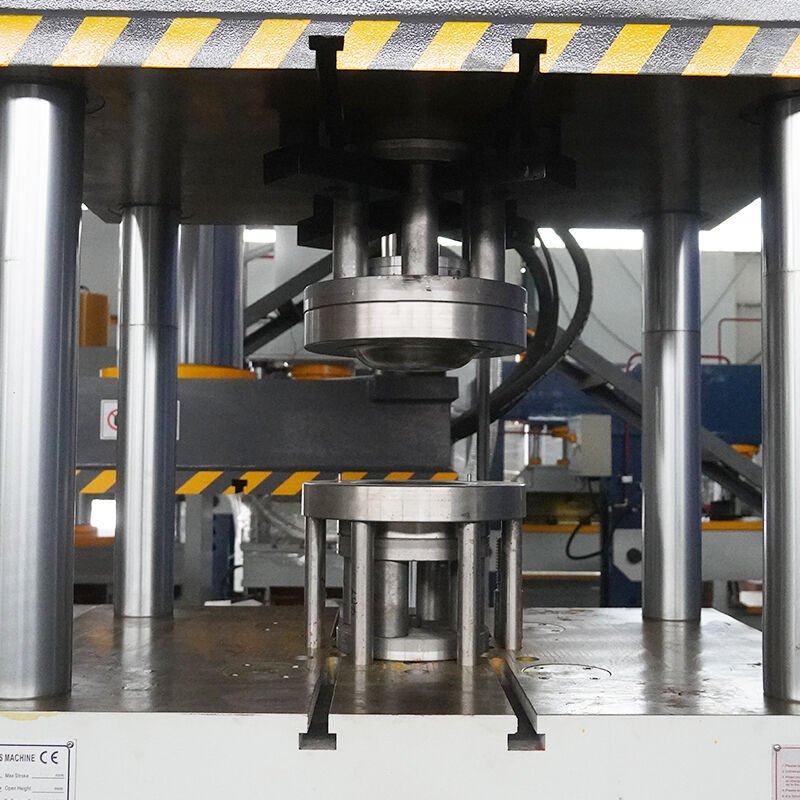

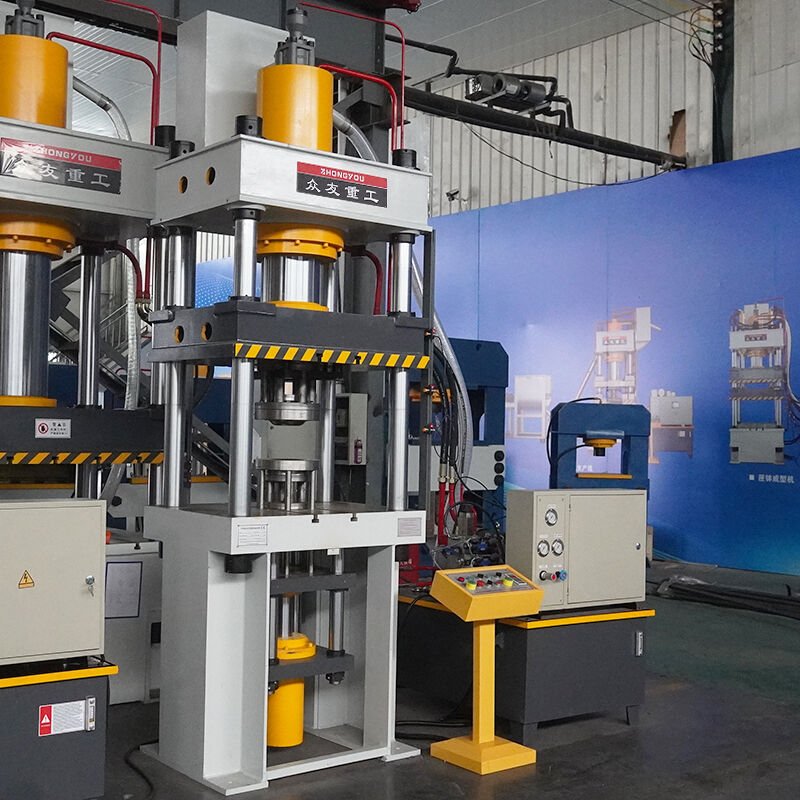

Detailed Pictures

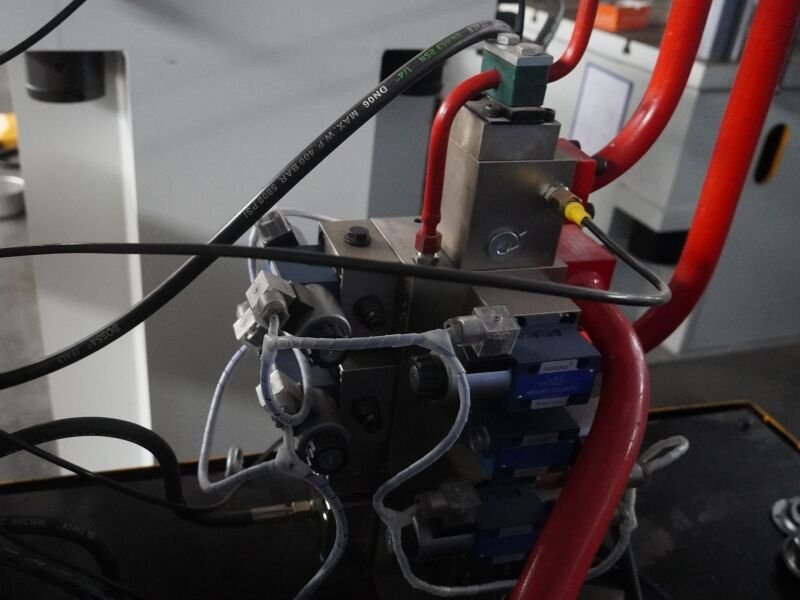

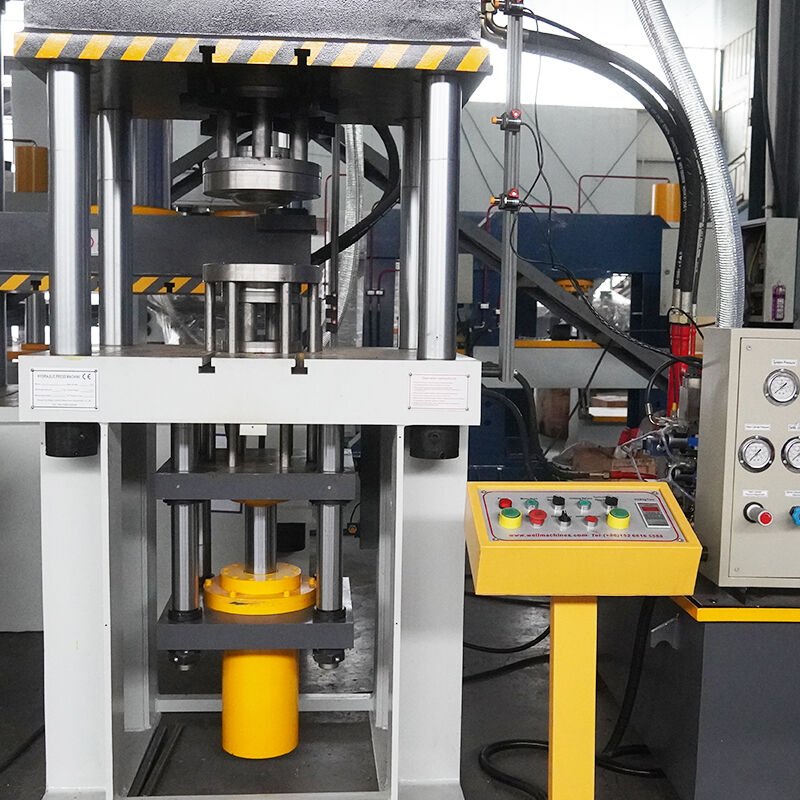

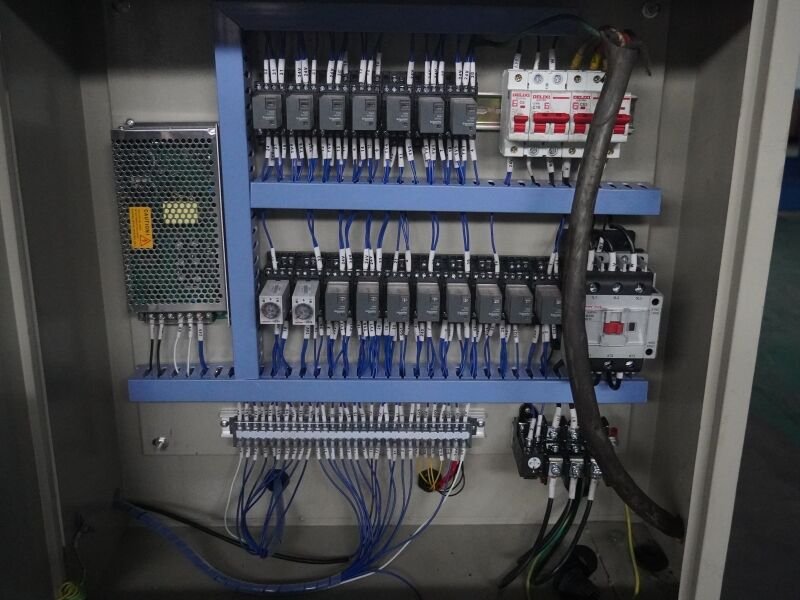

200吨铝锅拉伸机1107146、1107147带液压垫

Performance Characteristics

Adopts a three-beam, four-column structure for stability, high precision, and large operational space.
The hydraulic system uses advanced integrated cartridge valves, and the electrical system features brand-name components for high-precision pressing, reliable quality, and easy maintenance.
Simple button control for ease of operation.
Adjustable parameters including stroke, pressure, and holding time.
Scientifically designed for simplicity in structure and ease of maintenance.

Optional Configurations


Packing & Shipping


After-Sales Service

We provide comprehensive after-sales services including equipment installation, commissioning, and operational training. Hydraulic press manuals are provided to help users learn how to operate and maintain the equipment.
